Shine Metal is one of the largest manufacturers, exporter and suppliers of Stainless Steel 304L Flanges. We offer an immense range of product of Stainless Steel 304L Flanges. These Stainless Steel flanges are used to attach a part to another part. These products are known in the industry for their sturdy construction and durability. These Stainless Steel 304L Flanges are accessible to our valuable customers in a different range of diameters, wall thicknesses and sizes at market leading prices.

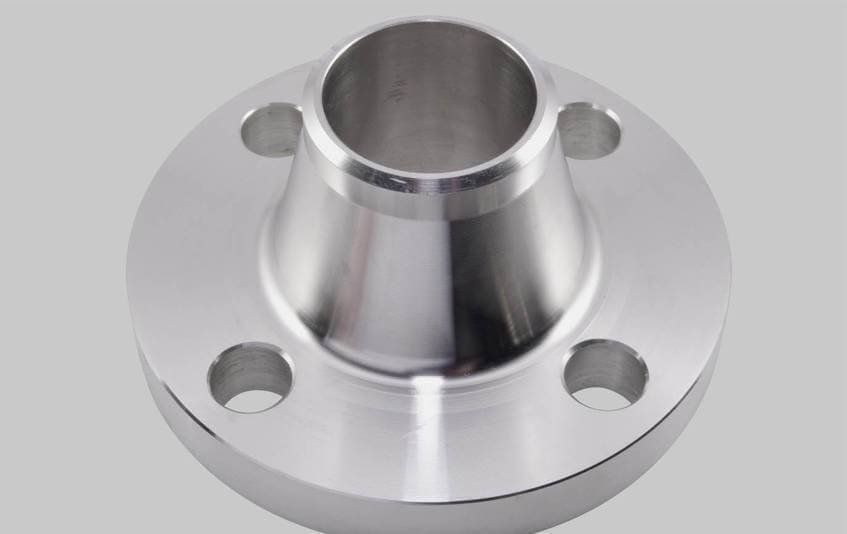

Stainless Steel 304L Flanges

Stainless Steel

304L

Flanges

ASTM A182 Stainless Steel 304L Flange, SS 304L Flanges, Stainless Steel S30403 Flanges, Stainless Steel 1.4306 Flanges, Steel 304L Flanges Exporter, ANSI B16.5 Stainless Steel 304L Flanges, 304L Stainless Steel Flange, Stainless Steel 304L Flanges Manufacturer in Mumbai, India

There are varieties of flanges available in Stainless Steel 304L Flanges. Stainless Steel, which is a molybdenum relevance and low carbon content “L” grade austenitic (a reliable solution in carbon) stainless steel that provides improved corrosion resistance.

ASME SA182 SS 304L Flanges, Stainless Steel 304L Screwed Flange, SS 304L Threaded Flanges, SUS 304L Flanges, Stainless Steel F304L Pipe Flanges, SS 304L Flate Face Flange, SS 304L Raised Face Flanges, Stainless Steel 304L Flanges Supplier in Mumbai.

The low carbon in Stainless Steel 304L Flanges provides resistance to during welding and other thermal processes. Stainless Steel 304L Flanges is non-magnetic in the annealed condition but may become slightly magnetic as a result of welding. Stainless Steel 304L Flanges have excellent corrosion resistance in a wide range of chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills. Stainless Steel 304L Flanges is resistant to Sulphur acid..

We are having an excellent team of experts who measures and examine the quality standards as per the requirement of customers and do changes if needed. Our experts do update the quality of the product as per the requirement of customers and the market trend from time to time, and we have an outstanding skilled employee at a lower level who performs efficiently and effectively to reach the quality standard of the product.

Our high-grade Stainless Steel 304L Flanges are used in different industries like chemicals, refineries, construction, waterworks and petrochemicals. We ensure to provide all desired tests and required documents at the time of product delivery. With strict quality testing, we guarantee quality and all other parameters of SS 304L Flanges before delivering to clients. Shine Metal is offering numerous ways of packaging and shipping as per the requirements of our clients. Before delivering the product, our expert team examines the product very well and supply top quality Flanges to our clients.

Stainless Steel 304L Flanges Specification

Standard ASTM A182 / ASME SA182
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges
Size 1/2" (15 NB) to 48" (1200NB)
Class/Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Equivalent Grades of A182 Stainless Steel 304L Flanges

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
SS 304L S30403 1.4306 / 1.4307 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11 SUS 304L 3304S11 03Х18Н11

Stainless Steel 304L Flanges Chemical Properties

Grade C Mn Si P S Cr Mo Ni N
304L 0.035 2.0 1.0 0.045 0.03 18 – 20 - 8 – 13 -

SS 304L Flanges Mechanical Properties

Grade

Density Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304L 8.0 g/cm3 515 205 35 92 201
